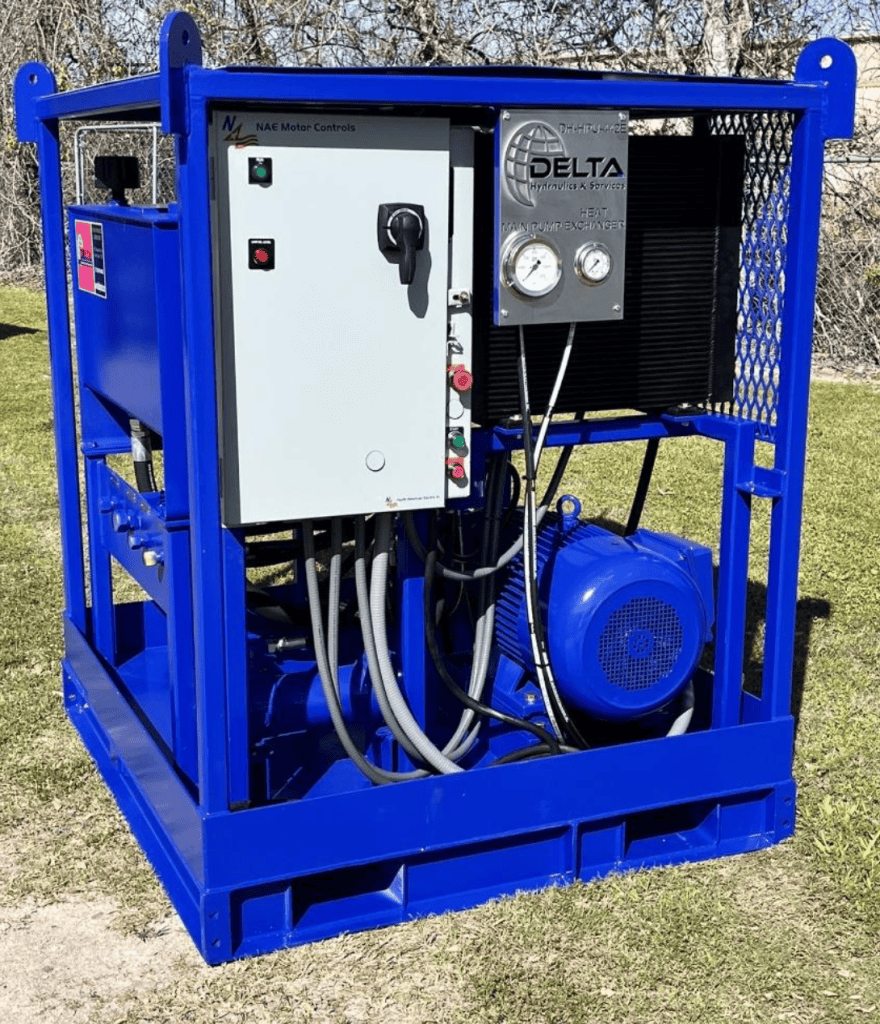

DH HPU 442E Electric Power Unit
* On-site Installation & Setup Available
Specifications
• 40 HP electric motor, 60 Hz, 31 Amps, Enclosure TEFC
Equipped with 440-480
• Across the line electrical motor starter
• 15-20 GPM compensating pump @3,000 PSI
• Built in pressure relief valve
• 20’ electrical “SO” cord
• Kidney-loop pump 10 GPM
• Hydraulic Tank Volume: 60 gallons
• Self-Contained Skid
• Dimensions: 58” W x 64” L x 71” H
• Weight: 2,800 lbs.
• Connection sizes: Pressure #12 male JIC, Return #16 male JIC, Case #2 male JIC
• Equipped with air-blast and tube and shell type heat exchangers
• Forklift and crane lift capability
